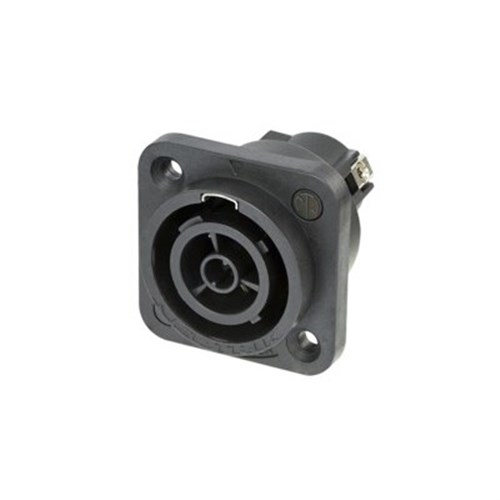

Neutrik Powercon True1 Top Appliance Outlet Connector with Screw Term

Product Code: NU-NAC3FPX-STTOP

Key Features
  • Heavy duty sealed power connector for harsh and demanding environment
  • IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified
$33.98 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-2 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik Powercon True1 Top Appliance Outlet Connector with Screw Term

Appliance outlet connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Product
Title NAC3FPX-ST-TOP
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 GΩ (after damp heat test)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 498: 20 A 250 V AC
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 14 AWG
Wiring screw terminals
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
Temperature range -30°C to +80°C according to IEC 61984
-5°C to +40°C according to IEC 60320-1
