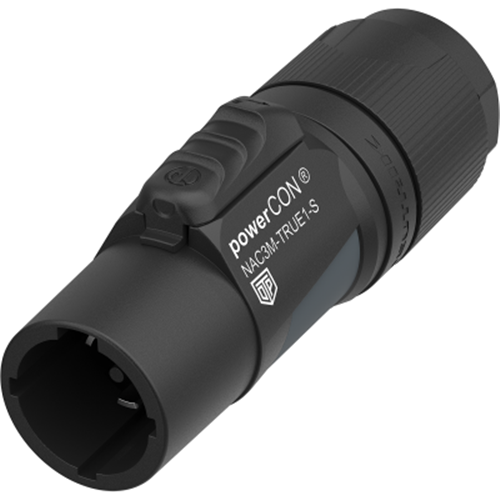

Neutrik PowerCON TRUE1 Cable Connector Inlet for 6-12mm OD Cable

Product Code: NU-NAC3M-TRUE1-S

Key Features
  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Lockable single phase connector
  • Extremely robust and reliable
  • ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
  • UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
  • UL Certified According to UL 498
  • IP65 and IP67 (mated or with closed cap)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist lock system
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
$25.97 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 1-2 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik powerCON TRUE1 Cable Connector Inlet for 6-12mm OD Cable

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Product
Title NAC3M-TRUE1-S
Product family powerCON® TRUE1
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance >0.1GΩ (after damp and heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe 16 A / 250 V AC according to EN IEC 60320-1
Rating America 20 A / 250 V AC according to UL 60320-1
20 A / 250 V AC according to CSA C22.2 No. 60320-1
20A/ 250 V AC according to UL 498
Mechanical
Cable O.D. 6 - 12 mm (0.23 – 0.47 inches)
Lifetime > 5000 mating cycles
Wiresize (mm²) 1.5 – 2.5mm²
Wiresize (AWG) 14 AWG
Material
Contact plating 2 μm Ag
Locking element Polyamide (PA 66)
Contacts Copper Alloy
Insert Polyamide (PA 66)
Shell Polyamide (PA 66)
Strain relief Polyketon
Environmental
Flammability UL 94 V-0
Protection class IP 65 / 67 (mated or with closed caps)
UV resistance F1 rated material withstands UV exposure
Temperature range -30°C to +80°C according to IEC 61984
-5°C to +40°C according to IEC 60320-1
