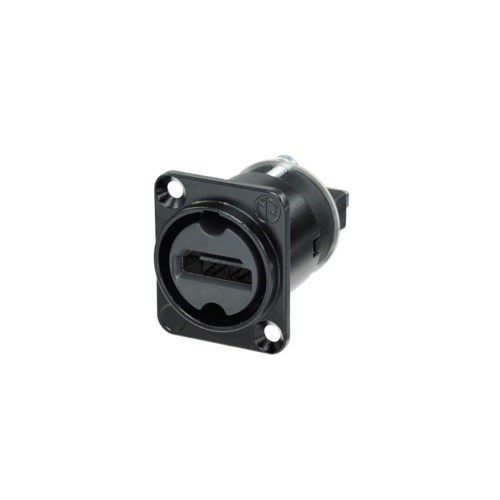

Neutrik D-size HDMI Receptacle Black Shell

Product Code: NU-NAHDMI-W-B

Key Features

Features

  • To transmit any digital TV and PC video format including high-definition video (HDTV)
  • IP65 ingress protection in mated condition with NKHDMI-* and SCDP-* sealing gasket
  • Removable screen to chassis grounding
  • HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends
  • Universally accepted standard D-shape housing
  • Shielded system - high noise immunity and EMI protection due to continuous 360 degree shield
$33.98 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Neutrik D-size HDMI Receptacle Black Shell

NAHDMI-W-B

HDMI feedthrough adapter, black D-shape housing

Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

Warranty

We offer a 180 days warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Technical Properties

Title NAHDMI-W-B
Connection Type Adapter
Gender female

Mechanical Properties

Wiresize
Locking device Push-Pull
Mounting direction Front or rear mounting (max 2 mm panel thickness)
Chassis shape D
Lifetime > 1000 mating cycles

Material Properties

Contact plating Au
Contacts Brass (CuZn39Pb3)
Insert
Shell Zinc diecast (ZnAl4Cu1)
Shell Plating Black chromium

Environmental Properties

Flammability UL 94 V-0
Standard compliance HDMI 2.0
Temperature range -25 °C to 85 °C
