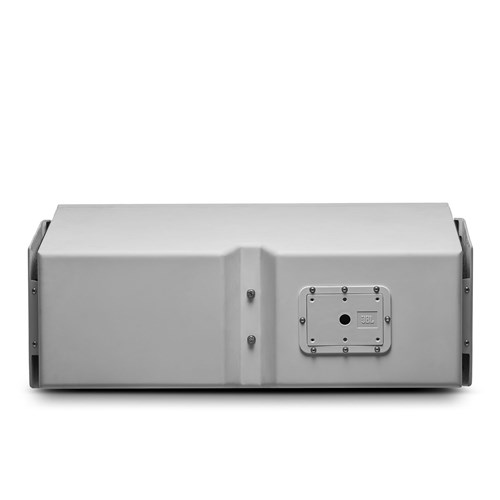

JBL VLA-C2100-GR - Two-Way Full Range Loudspeaker with 2 x 10 inch Differential Drive LF Grey

Product Code: JBL VLA-C2100-GR

Key Features
Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF, 100° horizontal coverage pattern, Grey
$17,541.61 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive® LF

The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.

The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.

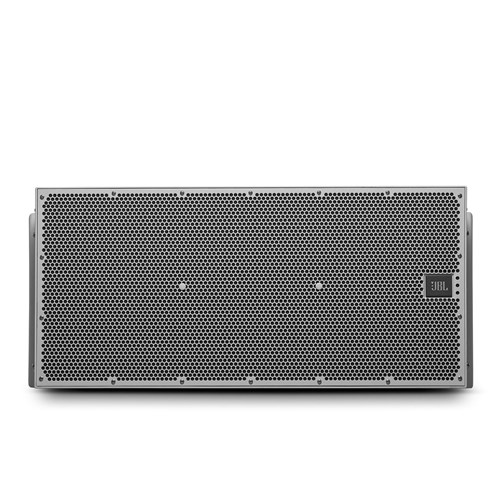

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.

Features

  • Compact line array module optimized for permanent install applications
  • Advanced technology component transducers for low weight and high output
  • Outdoor IP55 rated enclosure for protection from dust and water
  • Comprehensive rigging points for creating a line array configuration
  • Fiberglass box construction and weatherized components
  • Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
  • 100° horizontal coverage pattern
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10 dB) 86 Hz - 18 kHz
Frequency Response (±3 dB) 109 Hz – 15.3 kHz
Full Range 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp LF 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp HF 150 W Continuous Pink Noise (600 W peak), 2 hrs 50 W Continuous Pink Noise (200 W peak), 100 hrs
Full-Range 80 V Rms (2 hrs), 160 V peak
Maximum SPL (1m) 131 dB Cont. Ave (2 hrs), 137 dB Peak
Coverage Pattern (-6 dB) Horizontal: 100 ( 5/-15, 1.5 kHz to 15 kHz) Vertical: Varies with array size and configuration
Amplifiers Crown DCi Family with DSP on-boardRecommended: Crown DCi 2 | 1250N Crown DCi 4 | 1250N/ND/DA Crown DCi 2 | 2400N Crown DCi 4 | 2400N
Low Frequency Driver 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
High Frequency Driver 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C2100 to VLA-C2100: 2.4, 3.8, 6.0, 9.5, 15 using VLA-C2100 Bracket Plate (included with VLA-C2100)VLA-C2100 to VLA-C265 (either model on top/bottom): 1.9, 3.0 using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7, 7.5, 11.9 using VLA-C265 Bracket Plate (included with VLA-C265)VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0, 7.5 using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water)
Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers
Colors -GR: Gray (similar to Pantone 428C), -BK: Black
Dimensions (H x W x D) 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
Net Weight (ea) 37.7 kg (83 lbs)
Shipping Weight (ea) 44.0 kg (97 lbs)
Included Accessories 2 x VLA-C2100 Bracket Plates 8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hexdrive) for attaching Bracket Plates 2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via 4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts
Optional Accessories VLA-C-SB Suspension Bar Kit for the array, includes 2 identical Suspension Bars (for top/bottom), 4 pcs ¾-inch Class 2 Screw Pin Shackles (must use 2 Shackles for each Suspension Bar, located at end channels, not in the center).
