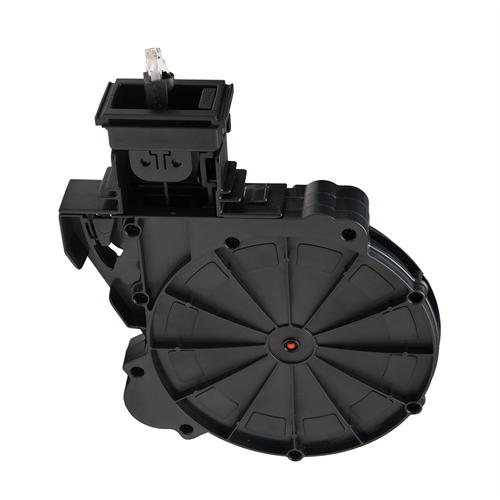

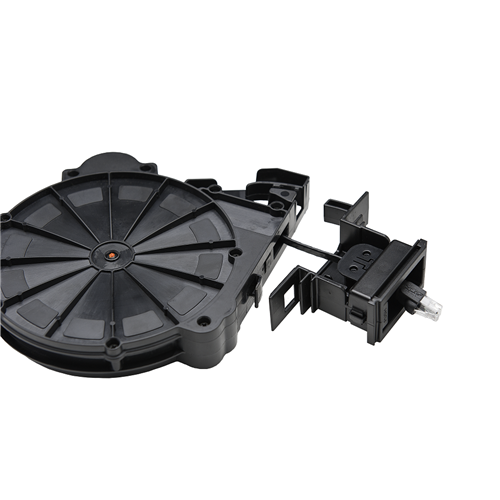

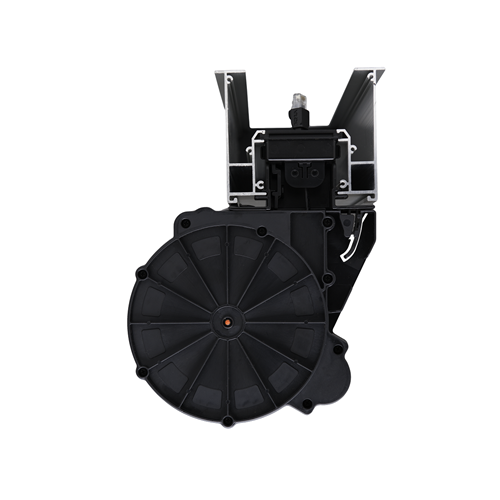

AMX HPX-N102-ETH-R - Cat6 Ethernet Module with Retractable Cable

Product Code: AMX FG552-34

Key Features
The HPX-N102-ETH-R Cat6 Ethernet Module with Retractable MyTurn ready Cable provides a compact solution with 4 feet available pullout from HydraPort HPX-600, 900 and 1200 Connection Ports or Touch Connection Ports
$708.68 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The HydraPort® Category 6 Ethernet Module with Retractable Cable delivers a compact, easy to install solution that organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay.

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Features

  • No Assembly, Adjustments or Terminations – Module installs quickly and easily with no special mounting
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)
Weight Approximately 1lb (0.46 Kg)
Integrated Cable
  • Ethernet Cat6 Retractable Cable
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)
  • Pigtail Connector: RJ-45 Male
  • Data Rate: 1000Base-T (Gigabit Ethernet)
Front Panel Components Pull-Out Connector: RJ-45 Male
Long-Term Reliability Tested to 10,000 pull and release cycles
Recommended Accessories CBL-ETH-FL2, Cat6 Ethernet Flat Cable (FG10-2194-16)
FG Numbers FG552-34
