DBX CT3 Cable Tester

Product Code: DBX CT3

Key Features
Advanced cable testing unit with split design, allowing users to test the cable at the plug-in source
$579.98 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

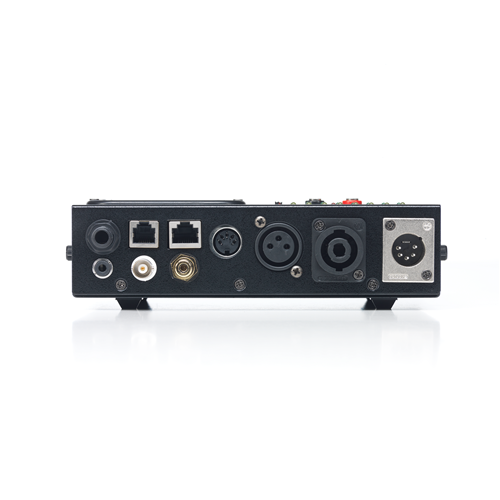

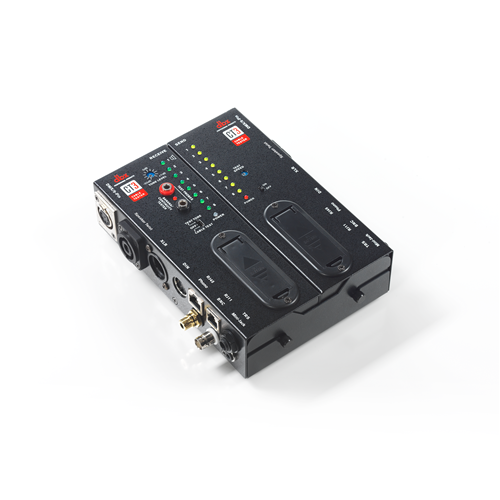

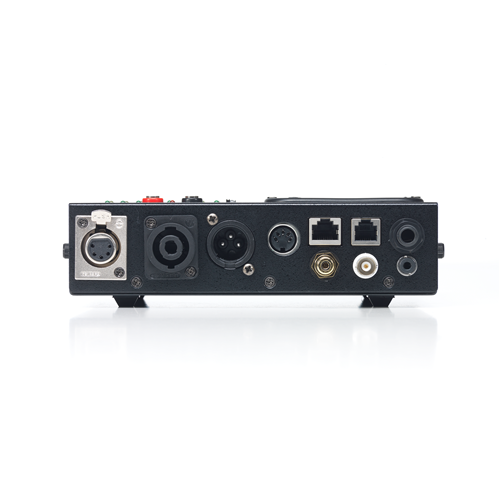

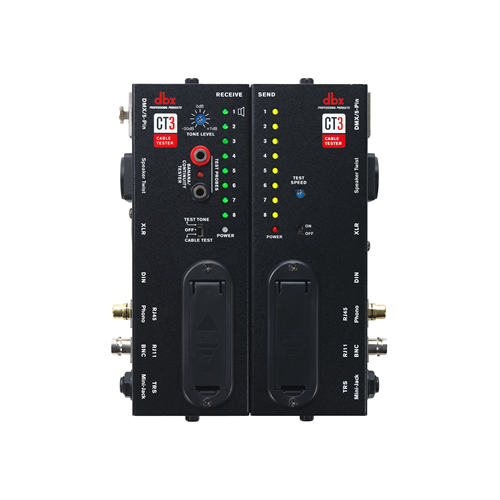

The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana. It can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested.



Features

  • Tests up to 8-pin cables
  • 2 piece chassis for testing installed cables
  • Test Tone Generator
  • Allows connection between different format connectors with ease
  • ‘Banana’ connector continuity tester with beeper and LED indicator
  • Super-rugged construction for durability and longer life
  • (2) DMX (5-pin) connectors for testing of 5 pin->to pin connections
  • (2) BNC connectors for testing of 2 pin->to pin connections
  • (2) RCA Phono connectors for testing of 2 pin->to pin connections
  • (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin->to pin connections
  • (2) MIDI (5-pin DIN) connectors for testing of 5 pin->to pin connections
  • (2) Speaker Twist connectors for testing of 4 pin->to pin connections
  • (2) Banana connectors for testing of 1 pin->to pin connections
  • (2) 1/4” (6.3mm) TRS/TS connectors for testing of 3 pin->to pin connections
  • (2) RJ45 connectors for testing of 8P8C modular connections
  • (2) 1/8” (3.5mm) TRS/TS connectors for testing of 3 pin->to pin connections
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Power Requirements (2) 9V batteries, one per side (Batteries not included)
Dimensions 3.5” (8.9cm) (W) x 5.5” (14cm) (L) x 1.5” (3.7cm) (H)
