Bittree E3F to RJ45 Reversible Bulkhead Patch Panel - 1 RU 1x24 Connectors

Product Code: CFP0120

Key Features

1 RU 1 ROW OF 24 CONNECTORS E3F TO RJ45 BULKHEAD REVERSIBLE

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

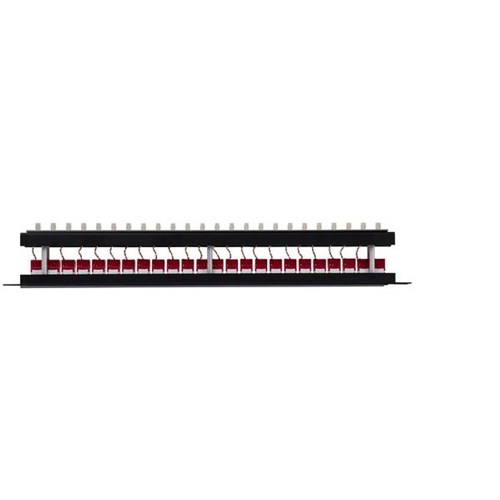

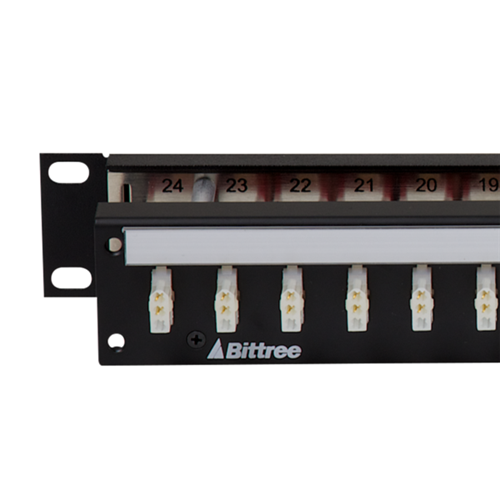

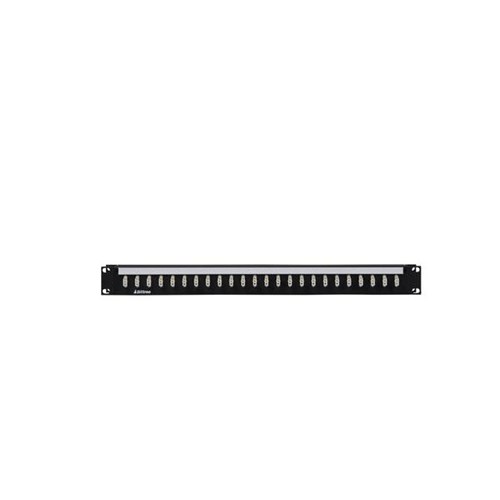

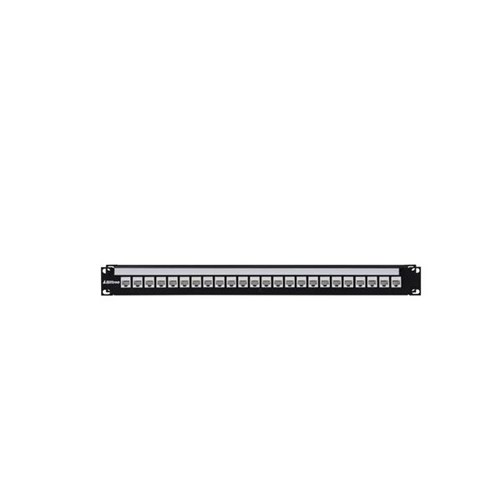

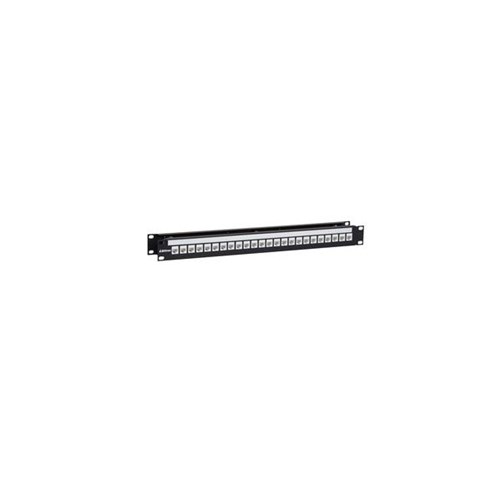

Bittree® E3 to RJ45 reversible bulkhead patch panel in 1 RU with 1x24 connector configuration

• Used to integrate 110 ohm audio into network cable infrastructure
• Panels come pre-populated with connector modules
•  /- on E3F wired to pair (1) of RJ45 connector (orange solid pair)
• Custom pinout configurations available
• Mating hardware included:
- 24 x E3M connector housings (3-pin male)
- 72 x EPIN crimp contacts (gold-plated)


Panel Features:

• Formed aluminum front panel with a durable black powder-coat finish
• Removable mounting ears allow front and rear panels to be reversed
• 2 x DS430-10-ASSY designation strips, one each on the front and rear panels

Bulkhead. 24 Connectors Per Row
