BNC Jack Properties:
• 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
• SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
• 75 ohm impedance with low return loss
• 500 Mating cycles
• Operating temperature: -35 to 165°C
• IP64 (mated)

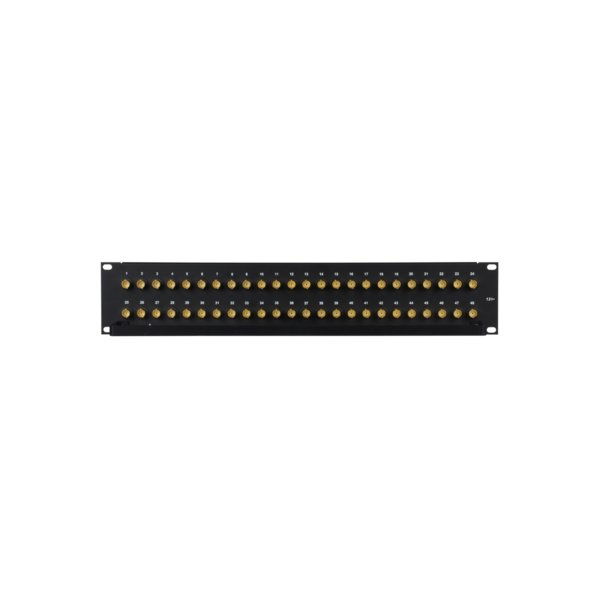

Panel Features:
• 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
• BNC connectors on both the front and back of the panel
• Silk screened circuit numbering on both the front and back with optional designation strip available for the front

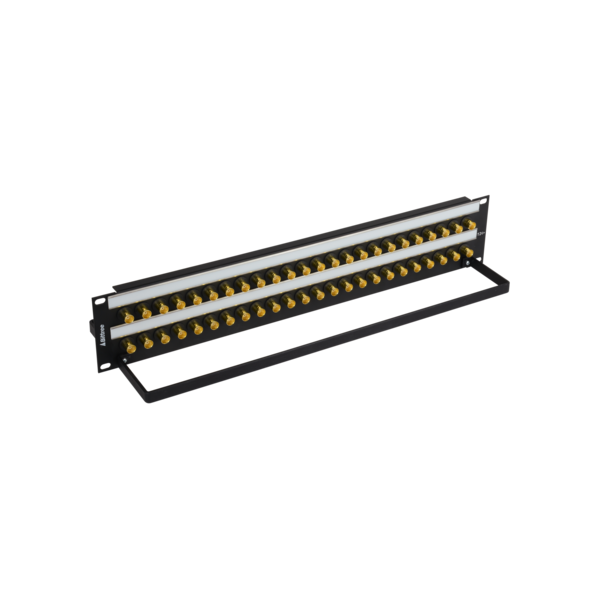

• Two 3" (7.62 cm) deep lacing bars for cable dressing (both are removable)
• Alternative 6" (15.24 cm) deep lacing bars available; please make a request at checkout if interested
Options:
• Front Panel Circuit Identification:
- Silk screened numbering only, or

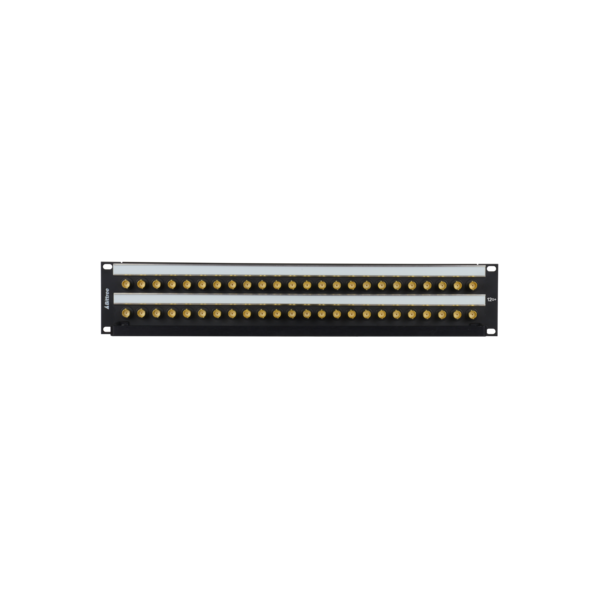

- 2 x DS580-20 Designation Strip (stainless-steel slider with white styrene and non-glare Lexan inserts)
Compliance:
• RoHS Compliance
