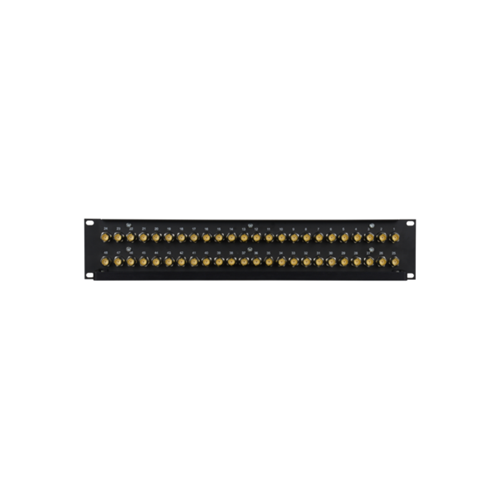

Bittree® 12G BNC Coaxial Bulkhead Panel in 2 RU Height with 2x24 Jack Configuration

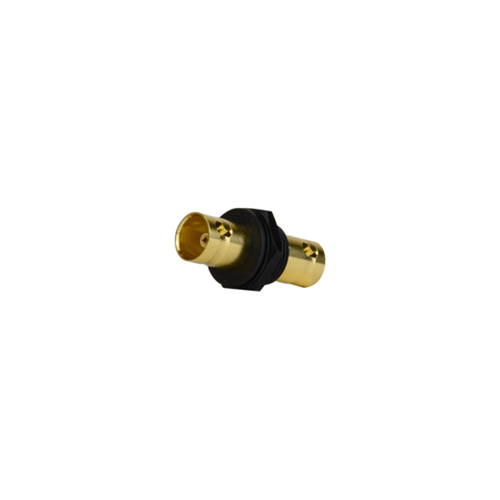

BNC Jack Properties:
• 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications
• SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
• 75 ohm impedance with low return loss
• 500 Mating cycles
• Operating temperature: -35 to 165°C
• IP64 (mated)
Panel Features:
• 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish
• BNC connectors on both the front and back of the panel

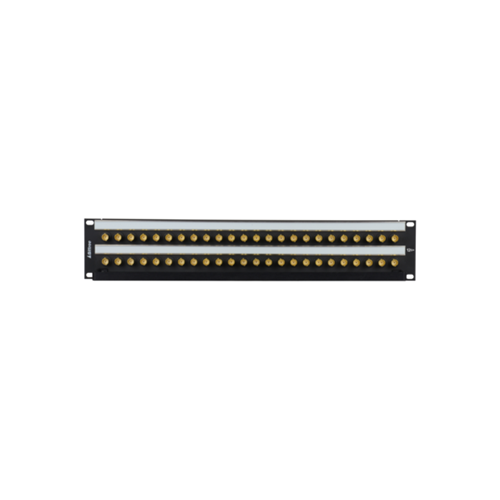

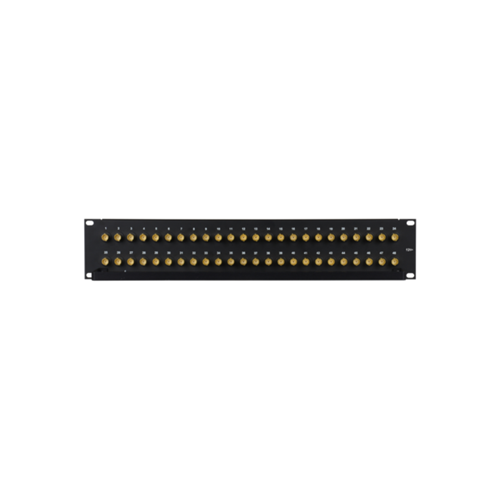

• Silk screened circuit numbering on both the front and back with optional designation strip available for the front

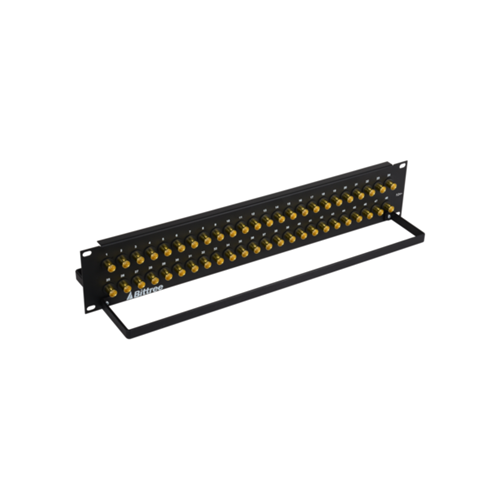

• Two 3" (7.62 cm) deep lacing bars for cable dressing (both are removable)
• Alternative 6" (15.24 cm) deep lacing bars available; please make a request at checkout if interested
Coaxial Bulkhead. 24 Connectors Per Row.
Prices of BNC Breakout Panels affected by the number of connectors and inclusion of designation strips
Available in heights of 1 and 2 RU. Optional designation strip(s) available.
Additional configurations available; please contact us or visit bittree.com for more information.
