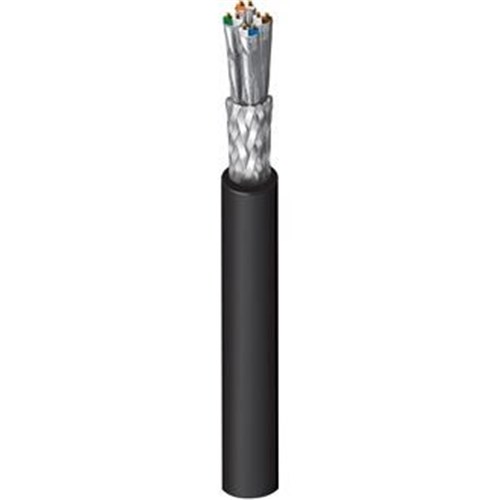

Belden CATSNAKE Flexible Ethernet CAT6A Cable 4 Pair S/FTP PVC Jacket 24AWG Black - 500m Reel

Product Code: 1302E.00500

Key Features

CATSNAKE S/FTP Cat6a PVC jacket

$7.37 inc GST
(Mtr)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Belden CATSNAKE Category 6A Cable, 4 Pair, S/FTP, PVC jacket

Suitable Applications

Field deployable CAT6a patch horizontal and building backbone cable; CobraNEt, eSnake, Ethersound, Digital audio over Ethernet; Support current and future Category 6A and 6 applications, such as: 10GBase - T(10 Gigabit Ethernet), 1000 Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM; Compatible connectors Belden R301601 000S1 (T568A) and R301602 000S1 (T568B)

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction Details

CONDUCTOR
Element Size Stranding Material Number of Pairs Number of Element
Individual Shielded Pair 24 AWG 7x32 BC - Bare Copper 4 8

INSULATION

Element Material Nom. Insulation Diameter Color Code
Individual Shielded Pair PE - Polyethylene (Foam) 1.4 mm (0.055 in) White & Blue, White & Orange, White & Green, White & Brown

CABLE CORE
Description
4 pairs twisted together

INNER SHIELD
Element Shield Type Material Coverage
Individual Shielded Pair Tape Bi-Laminate (Alum Poly) 100%

Table Notes

Aluminum facing outside

OUTER SHIELD
Shield Type Material Coverage Drainwire Type
Braid Tinned Copper (TC) 80% 26 AWG (Solid) TC

OUTER JACKET
Material Nom. Diameter
PVC - Polyvinyl Chloride 7.9 mm (0.31 in)

Table Notes

Matte Finish

Overall Cable Diameter (Nominal)

7.9 mm (0.31 in)

Electrical Characteristics

ELECTRICALS
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
95 Ohm/km (29 Ohm/1000ft) 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm

DELAY
Max. Delay Skew Nom. Velocity of Prop.
25 ns/100m 77%

TRANSFER IMPEDANCE
Frequency Max. Transfer Impedance
1 Mhz Max. 50 mOhm/m
10 Mhz Max. 100 mOhm/m
30 Mhz Max. 200 mOhm/m
100 Mhz Max. 1000 mOhm/m

Transfer Impedance Class

Grade 2

Screening Class

Type Ib

Table Notes

Coupling Attenuation

VOLTAGE
Voltage Rating
72 V

Mechanical Characteristics

TEMPERATURE
Operating Installation Storage
-30°C To 60°C 0°C To 50°C -30°C To 60°C

TRAILING/FLEXING PROPERTIES
Motion Number of Cycles Radius Speed Acceleration Traverse Length
Trailing/Bending 2,000,000 80 mm 5 m/s 5 m/s² 5 m

BEND RADIUS
Stationary Min. Installation Min.
32 mm (1.3 in) 64 mm (2.5 in)

Max. Pull Tension

75 N (17 lbf)

Bulk Cable Weight

50 kg/km (34 lbs/1000ft)

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor

Flammability / Reaction to Fire

IEC 60332-1

IEEE Compliance

PoE: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6A

TIA/EIA Compliance

ANSI/TIA 568.2-D

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-6

CENELEC Compliance

EN 50173-1, Segregation class according EN50174-2 = c

European Directive Compliance

EU CE Mark, REACH
