AMX DXFP-RX-4K60 - DXLink 4K60 HDMI Fiber Receiver Module

Product Code: AMX FG1010-565-01

Key Features
  • HDMI 2.0 4K60 4:4:4 Over Distance
  • High Dynamic Range (HDR) Support
  • HDCP 2.2
  • USB 2.0
  • As Always, Just One Cable
  • Single MMD SKU
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

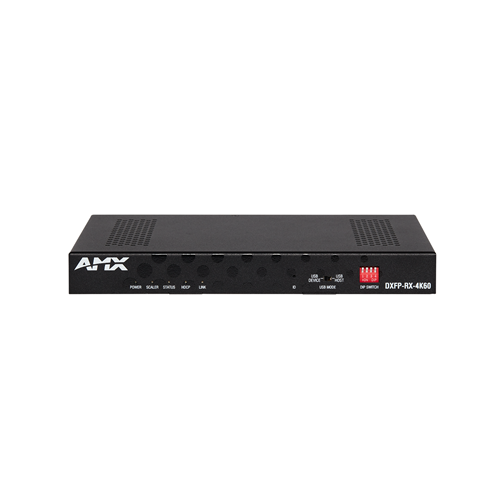

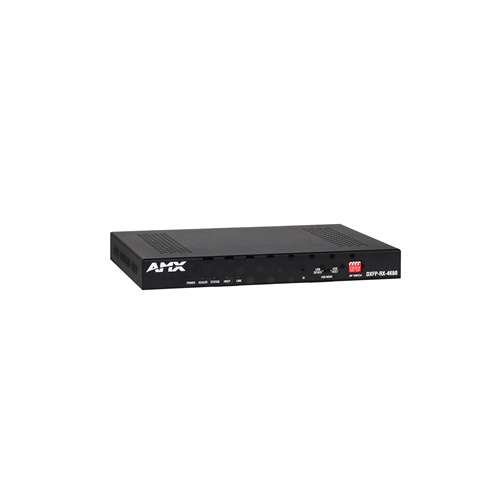

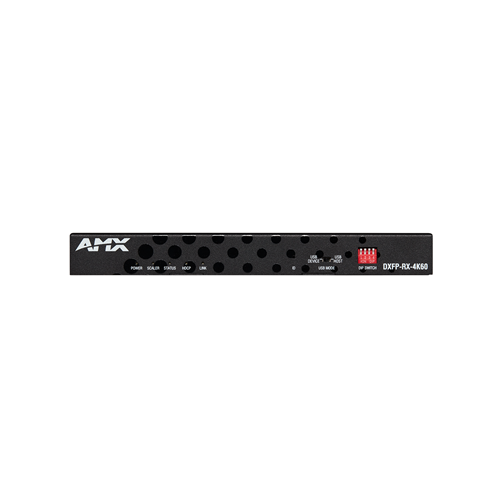

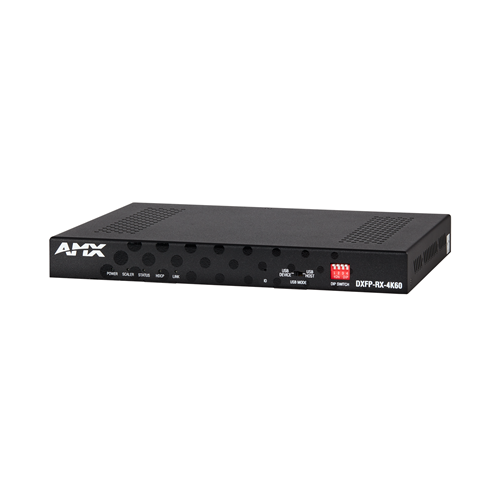

AMX DXFP-RX-4K60 - DXLink 4K60 HDMI Fiber Receiver Module



The AMX DXLink 4K60 HDMI Fiber Receiver is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum video quality and pixel-for-pixel image reproduction without chroma subsampling. DXLink 4K60 Fiber allows end users to realize the full potential of their source and display devices by fully supporting 36-bit Deep Color for the richest, most realistic video.

This module receives audio, video, control, USB 2.0, and Ethernet over duplex fiber from a DXLink 4K60 Fiber transmitter up to 300 meters away. It includes a Multi-Mode Duplex (MMD) SFP, which can be replaced with a Single-Mode Duplex (SMD) SFP if needed.

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber output cards and DXLink 4K60 Fiber transmitters.



Common Applications:

This receiver is ideal for applications where the demands of high-resolution video clarity, long distance transmission, and maximum security need to be met without compromise, including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas, and museums.



Features:

HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which uses the full fidelity of their displays

High Dynamic Range (HDR) Support – Support for 36-bit Deep Color.

HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces

USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.

As Always, Just One Cable– Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.

Single MMD SKU – All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions (HWD) 220mm x 25mm x 220mm / 8.66’’ x 0.98’’ x 8.66”
DxLink Fiber Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A)
USB USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Fiber Transmitters and DGX DXLink 4K60 Fiber Output Boards.

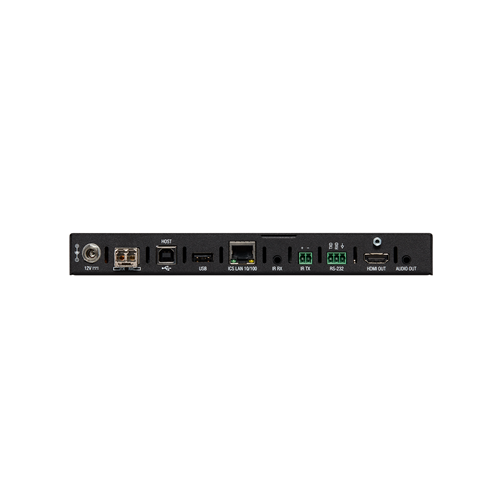

Back Connectors Local Power: 2.1mm DC Power Jack; DXLink Fiber Input: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); ICS LAN/Ethernet Port: RJ-45 Connector; HDMI Output: HDMI Type-A Receptacle; Serial: 3.5mm Phoenix Receptacle; IR RX: 3.5mm mini Jack; IR TX: 3.5mm mini Jack; USB Host: USB Type B Connector; USB Device: USB Type A Connector; Analog Audio Output: 3.5mm mini Stereo Jack
HDMI Compatible Formats: HDMI, HDCP
4K Format Support Scaler Mode:
3840x2160@24/25/30/50/60 (4:4:4);
4096x2160@24/25/30/60 (4:4:4)
Bypass Mode:
3840x2160@24/25/30/50; 4096x2160@24/25/30;
3840x2160@60 4:4:4; 4096x2160@60 4:2:0
HDMI Audio Support Bypass Mode: Dolby TrueHD, Dolby Digital, DTS-HD MA, DTS, 2 CH L-PCM, 6 CH L-PCM, 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels
Scaler Mode: PCM 2.0
HDCP HDCP Support: Yes, 1.4, 2.2
Power Supply Each RX ships with a desktop power supply with power cord
Compatible AMX Products Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX DXLink 4K60 Fiber Output Board (DGX-O-DXFP-4K60) installed, DXLink 4K60 Fiber Transmitters (DXFP-TX-4K60)
FG Numbers DXFP-RX-4K60 (FG1010-565-01)
DXFP-RX-4K60-TAA (FG1010-565-02)
