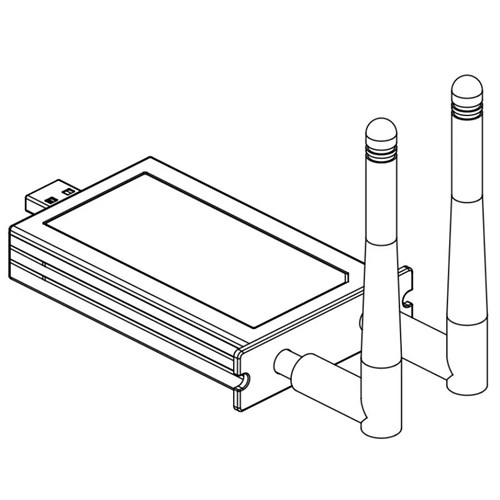

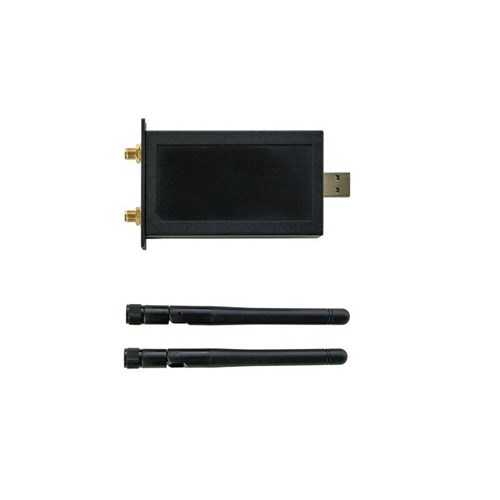

Philips CRD22 WiFi Module

Product Code: PHL CRD22

Key Features
  • CRD22 WiFi Module
  • Suits Philips 3650Q display screens
  • $133.57 inc GST
    (EA)
    Increase value Decrease value
    Qty Each (inc GST) Each
    In Stock
    • Features
    • Overview
    • Technical Specs
    • Documents

    Philips CRD22 WiFi Module

    Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Simply connect the display to the internet using the optional CRD22 Wifi module or via LAN, and enjoy your own created playlists.

    Warranty

    We offer a 1 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.


    Main Chip MT7921AU
    Front end I/O
    Input Signal USB 3.0
    Output Signal USB 3.0
    Power supply
    Type On board connector for Mainboard
    Input voltage 5V
    Rating 5V 0.9A
    Power consumption 4.5W
    Input connector USB 3.0
    Operational Environment
    Temperature 60°C
    Humidity 20 – 80% (without condensation)
    Storage Environment
    Temperature -40 – 80°C
    Humidity 10 – 90% (without condensation)
    90-3.5x(Temp-40[°C]) % regarding over 40°C
    Dimension(W x H x D)
    Net 107mm x 61mm x 17.1mm
    Gross 138mm x 110mm x 32mm
    Weight
    Net(Kg) 0.047 Kg
    Gross(Kg) 0.130 Kg
    Media Access Protocol CSMA/CA with ACK
