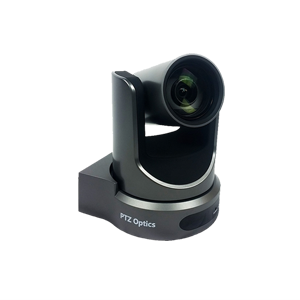

PTZOptics 12X SDI Gen2 Broadcast and Conferencing Camera Grey

Product Code: HUD-PT12X-SDI-GY-G2

Key Features

The PTZOptics 12X-SDI is a 1080p camera with 12X optical zoom for capturing both wide angles and long shots. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications. Available in grey and white.

$2,907.15 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The PTZ Optics 12X-SDI (*part number changed from 12X-IP) is a 1080p camera with 12X optical zoom for capturing HD video at long distances. With support for HDMI, HD-SDI and IP Streaming (H.264) this camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications.

• 72.5 degree wide-angle lens
• High performance in low illumination situations
• Full 1920x1080p HD Resolutions up to 30 frames per second
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”
• Wide Dynamic Range: capable of capture all features of images when there is a strong contrast between subject and background
• New: Open Source IP Control Software
• 3 Year Warranty: Check out the Quality Control
• New: Android Camera Control App

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Camera & Lens:

Video CMOS Sensor: 1/2.7” CMOS, 2.07 Mega Pixels
Frame Rate: 1080p/30, 1080p/25, 720p/60,
720p/50, NTCS, PAL
Lens: 12x, F3.5mm-42.3mm, F1.8-F2.8
Lens Zoom: 12x, 16x Digital Zoom
Field of View: 72.5°
Min Lux: 0.5 Lux at F1.8, AGC ON
Shutter Speed: 1/25s - 1/10000s
SNR: 55dB
Vertical Flip & Mirror: Supported
Horizontal Angle of View: 72.5° - 6.9°
Vertical Angle of View: 44.8° - 3.9°

Pan & Tilt Movement:

Pan Movement: ±170°
Tilt Rotation: -30°- 90°
Presets: 64 Presets (245 Presets via RS-232)

Rear Board Connectors:

Video Output Interface HDMI, HD-SDI, IP Streaming, CVBS
Network Interface RJ45
Audio Interface: Line In, 3.5mm
Communication Interface: RS-232, RS485
Baud Rate: 2400/4800/96000 bits
Power Supply Interface: JEITA type Power Adapter (DC IN 12V)
USB Interface: USB 2.0 (for ¬rmware updates only)

Electrical Index:

Power Supply: 8W
Input Voltage: 12V DC (10.8 - 13.0V DC)

Physical Specifications:

Dimension inches: 5”W x 6.5”H x 6.63”D (8.6“ Height Extended)
Dimensions milimetres: 127 W x 167 H x 168 D (204 Height Ext)
Box Dimensions: 9”x9”x10” | 228mmx254mmx228mm
Camera Weight: 3.25 lbs. (1.47 kg)
Boxed Weight: 5.4 lbs. (2.45 kg)


Specifications subject to change without notice.
