HuddleCamHD SimplTrack Lite - Auto Tracking Camera

Product Code: HUD-HC20X-SIMPLLITE

Key Features

The HuddleCamHD SimplTrack Lite makes it easier than ever to deliver high-quality conferences or lectures with no camera operator – or expertise – required.

$3,563.04 inc GST
(Each)
Increase value Decrease value
Qty Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

HuddleCamHD SimplTrack Lite - Auto Tracking Camera

Track Subjects with Ease

The HuddleCamHD SimplTrack Lite makes it easier than ever to deliver high-quality conferences or lectures with no camera operator – or expertise – required.

  • Smooth, automatic motion tracking up to 55ft away with focus up to 20X in 1080p at 60fps (30fps USB) with up to 270° rotation and 59.5° FoV
  • True plug and play: Use the included USB 2.0 cable to connect to any computer and start auto-tracking
  • Set and forget presets: Want to limit your tracking range? Set preset zones to keep the camera centered on whiteboards, conference tables and more

Integrate with Any Platform

With a broad range of output options, including NDI®|HX, USB 2.0, IP, SDI, and HDMI compatibility, the SimplTrack Lite is easy to set up and can integrate seamlessly with your current system.

  • Compatible with most videoconferencing, streaming, lecture capture and learning management system platforms
  • Built-in 3.5mm headphone jack can be connected to any external microphone
  • Included dedicated management software allows for remote operation from any Windows PC, anywhere on the network

Deploy Anywhere

The SimplTrack Lite gives you flexible options for nearly any indoor setting, even without a dedicated PC.

  • Featuring PoE (802.3af), plus multiple mounting configurations available to meet the needs of any indoor setting, including inverted mounting
  • Capture subjects near or far with automatic tracking distance of up to 55ft, with 59.5° FoV and 270° rotation
  • Want more control? Enable Manual Mode via IP or included RS-232 cable to operate the SimplTrack Lite with included IR remote, a PTZ camera joystick controller, or camera control apps

Key Features:

  • 20X Optical Zoom
  • Motion & Facial Framing
  • RSTP / RTMP Streaming
  • Multiple Video Outputs
  • 1080p@60 FPS SDI Feed
  • 1080p@60 FPS IP Feed
  • 59.5° Field of View
  • Software Interface
  • Supposed VISCA Protocol & VISCA over IP
  • Photobooth Functionality
  • Preset Zones
  • All-in-One Solution
  • Dedicated Management Software





Warranty
We offer a 3 year warranty on this product from its date of purchase. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.
Image Sensor & Lens
Video Sensor 1/2.8” CMOS, 2.14 Mega Pixel
Frame Rate 60fps @ 1920x1080p
Lens Zoom 20X Optical, f=4.7-94mm
Field of View 2.9° (tele) to 59.5° (wide) Horizontal
Min Lux 0.5 lux
Pan / Tilt Movement
Pan Movement ±170°
Pan Speed 0.1° to 120° /s
Tilt Movement 90° to -30°
Tilt Speed 0.1° to 90° /s
Presets 64 Presets
Electrical Index
Power Supply  12V DC 2.5A
Input Power 20W (Max)
PoE PoE (802.3af) Supported
Physical Specifications
Material Aluminum, Plastic
Color Gray
Dimensions (W x D x H) 8.31” x 5.47” x 8.19” | 211mm x 139mm x 208mm
Weight 2.64 lbs (1.2 kg)
Working Environment Indoor
Operating Temperature 32°F ~ 104°F (0°C to 40°C)
Storage Temperature -4°F ~ 140°F (-20°C to 60°C)
Humidity Range 10% - 80%

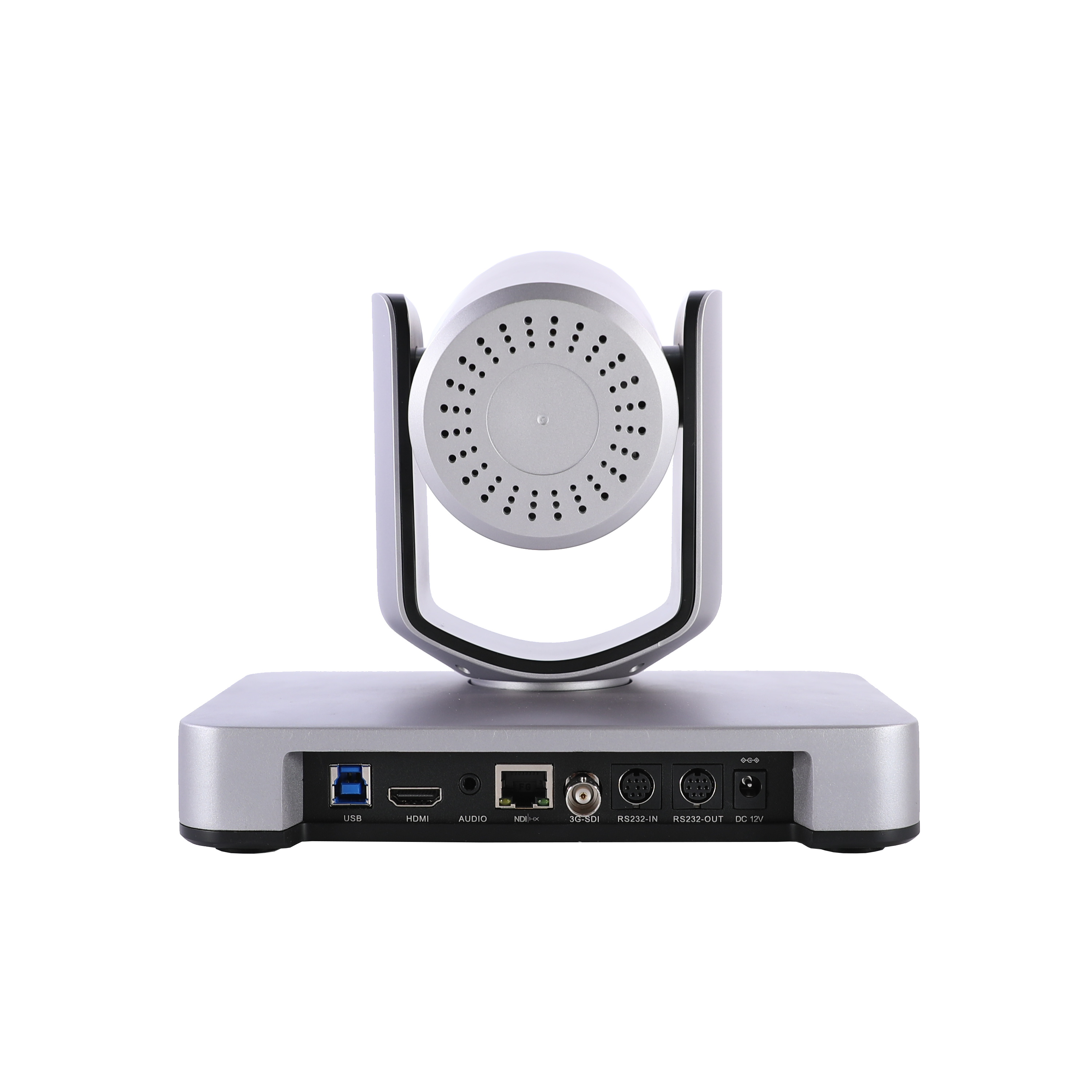

Rear Board Connectors
HD Video Interfaces 3G-SDI, USB 2.0, HDMI, & RJ-45
Controller Signal Interface 8-pin mini din (VISCA)
Audio Input Interface 3.5mm line in (embeds over IP feed only)
Network 10/100
Power Supply Interface D12V 2.5A or PoE (802.3af)
