  • HuddleCamHD HuddleView 12X Optical Zoom USB 3.0 Auto Framing Camera

HuddleCamHD HuddleView 12X Optical Zoom USB 3.0 Auto Framing Camera

Product Code: HUD-HC12X-HVIEW

Key Features
  • 12X Optical Zoom
  • Motion & Facial Framing
  • RTSP / RTMP Streaming
  • Multiple Video Outputs
  • 1080@60 SDI Feed
  • 1080@60 IP Feed
  • 3G-SDI / DVI-D / USB3.0
  • 72.5° Field of View
  • Software Interface
  • Supports VISCA Protocol & VISCA over IP
  • Photobooth Functionality
$5,498.43 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

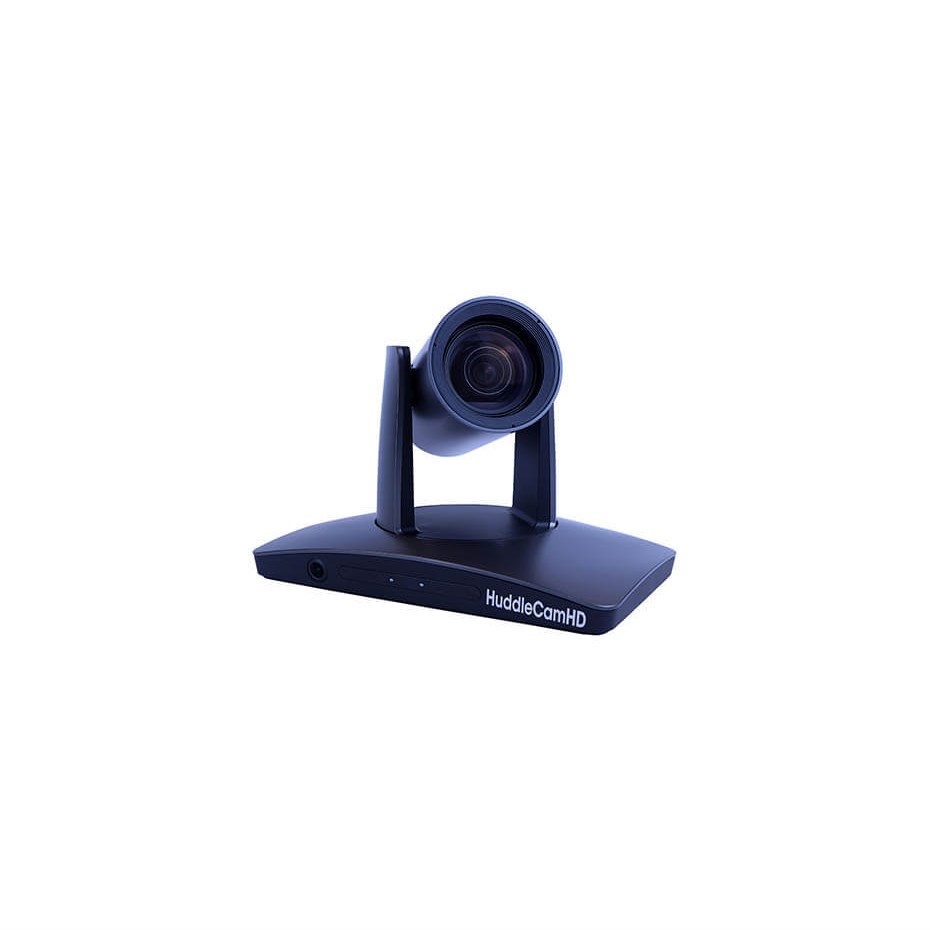

HuddleCamHD HuddleView 12X Optical Zoom USB 3.0 Auto Framing Camera

The HuddleView automatically frames all meeting participants in view for every meeting. This intelligent auto framing camera uses facial tracking and motion to frame subjects. With a 12X optical zoom, the HuddleView is an ideal video conferencing camera solution for mid- to large-sized conferencing spaces.

The two-camera system allows for the framing of all participants present at a meeting. Using a 12 optical zoom, the HuddleView frames the first meeting participant and continually adjusts as more participants enter the meeting space. It’s that easy. Eliminate the setup and have your meeting room camera zoom in to capture everyone in full detail without a remote control.

To truly customize a conferencing space, every HuddleView features software that gives camera operators the ability to set blocking zones where the camera won’t track. The software also makes it possible to operate multiple HuddleView cameras on the same network. The HuddleView uses artificial intelligence technologies to ensure that all meeting participants are captured in the camera’s frame. Enjoy the highest quality video conferencing experience with zero setup. The HuddleView simplifies your meeting your experience by automatically zooming into the people in your conference room and comfortably framing your video output for the ideal video. Create a complete USB based video conferencing solution with our HuddlePod Air Duo wireless USB speakerphones.



Additional Features:

  • High Definition
  • Wide Angle Lens
  • Plug & Play
  • Universal Compatibility





Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Tracking Camera Image Sensor & Lens:
Video Sensor 1/2.8” EXMOR, 2.14 Mega Pixel
Frame Rate 60fps @ 1920x1080p
Lens Zoom 12X Optical, f=3.9-46.8mm
Field of View 6.3° (tele) to 72.5° (wide) Horizontal
Min Lux 0.5 lux
Reference Camera Image Sensor & Lens:
Video Sensor 1/2.8” EXMOR, 2.14 Mega Pixel
Field of View 86° (Horizontal) x 52° (Vertical)
Lens 2.4mm
Pan/Tilt Movement:
Pan Movement ±170°
Pan Speed 0.1° to 120°/s
Tilt Rotation 90° to -30°
Tilt Speed 0.1° to 90° /s
Presets 256 Presets
Electrical Index:
Power Supply 12V DC 2.5A
Input Power 20W (Max)
Physical:
Material Aluminum, Plastic
Width 9.6” (243.0mm)
Depth 5.7” (145.0mm)
Height 6.4” (163.0mm)
Weight 2.64 lbs (1.2 kg)
Working Environment Indoor
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Color Gray

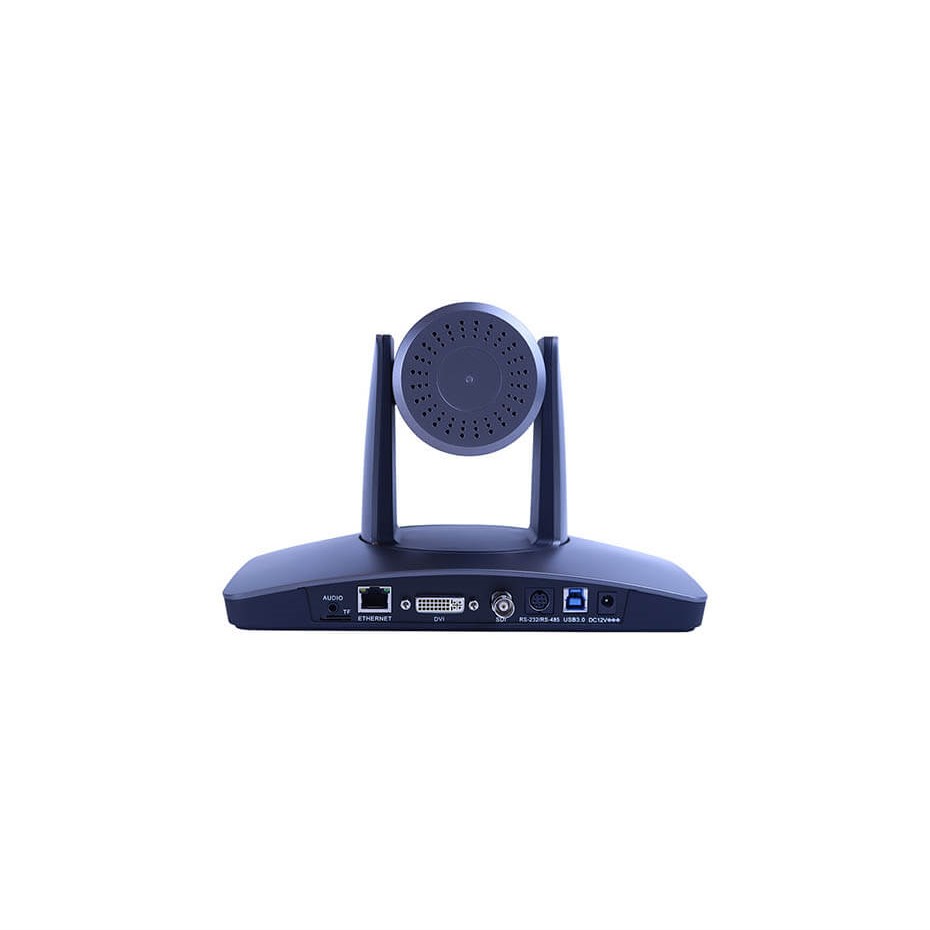

Rear Board Connectors:
HD Video Interface 3G-SDI, USB 3.0, DVI-D/HDMI
Controller Signal Interface Phoenix Connector (VISCA IN)
Audio Input Interface Phoenix Connector
Network 10/100
Power Supply Interface DC 12V 2.5A
